Ejection rubber with adhesive stick 7/8/9/10/12mm thickness for Diecutting Dieboard
Compressed Sponge,Rubber Printing Blanket
,Rubber Printing Blanket
Wave Cut or Straight Cut Ejection Rubber Sheet Rubber Sheet for Die Making
Specifications
Good bounced back power, durablity
Different thickness, 7,8,9,10,11,12mm
Slit into 42 wave or straight line
Adhesive back
We have 2 kinds of ejection rubber:

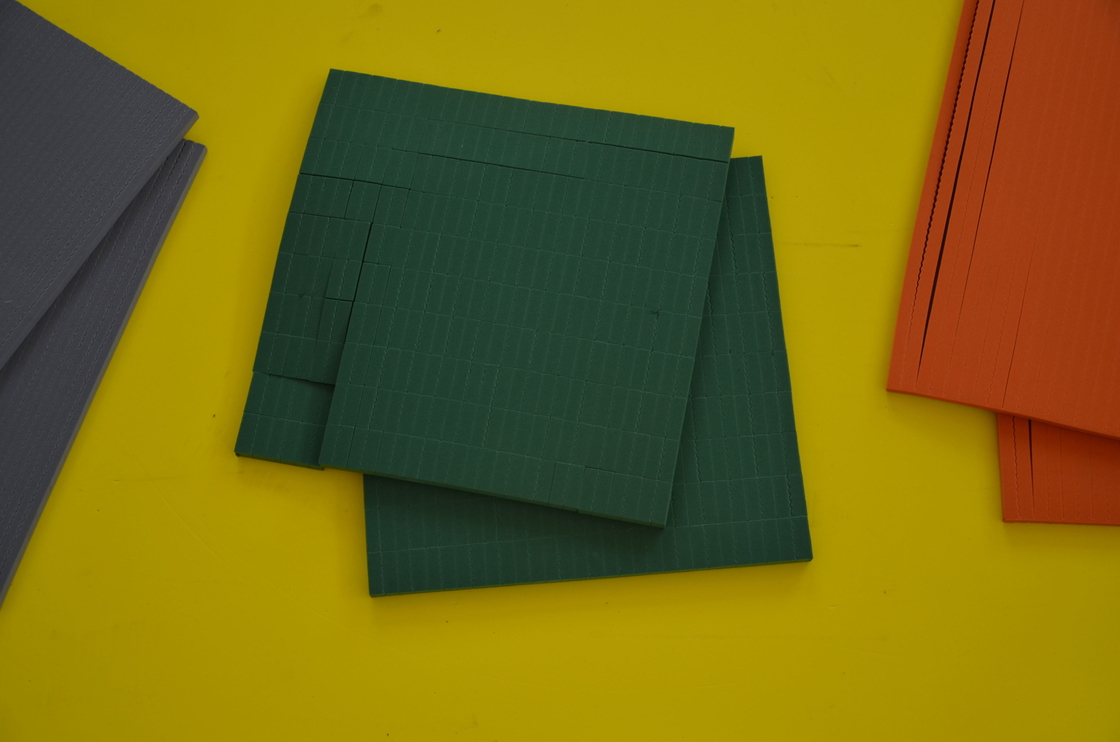

1. Green ejection rubber
300x380x8mm
300x380x10mm
Cut into wave line, Surface has dots for anti-sliding
Every 24 sheets/box for 8mm thickness
Every 20 sheets/box for 10mm thickness
Hardness: 35 shore
This high quality rubber is suitable for fully auto diecutting m/c with fast diecutting action
2. Yellow/blue ejection rubber
300x380x9mm
300x380x12mm
Cut into wave line, Surface has dots for anti-sliding
Every 24 sheets/box for 9mm thickness
Every 20 sheets/box for 12mm thickness
Hardness: 20 shore
This medium quality rubber is suitable for semi-auto diecutting m/c (tiger mouth diecutting m/c).
|
ITEM
|
HARDNESS
|
THICKNESS
|
PACKAGE
|
|
White Band Shape Rubber
|
20
|
9mm
|
27sheets/box
|
|
12mm
|
20sheets/box
|
||
|
Orange Band Shape Rubber
|
25
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Orange Wave Shape Rubber
|
25
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Orange Outward Ripple Shape Rubber
|
30
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Gray Band Shape Rubber
|
30
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Gray Outward Ripple Shape Rubber
|
30
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Gray Wave Shape Rubber
|
35
|
8mm
|
30sheets/box
|
|
9mm
|
27sheets/box
|
||
|
Gray Cube Shape Rubber
For the corrugated paper
|
25
|
13mm
|
18sheets/box
|
|
15mm
|
16sheets/box
|
||
|
16mm
|
15sheets/box
|
||
|
Special Rubber For
Electronic Products(orange)
|
20
|
5mm
|
48sheets/box
|
|
6mm
|
40sheets/box
|
||
|
7mm
|
34sheets/box
|
||
|
Green Wave Rubber
|
25
|
8x380x300mm
|
24sheets/box
|
|
Green Wave Rubber
|
35
|
10x380x300mm
|
20sheets/box
|
-
